Sink Options for Custom Vanity Top Program

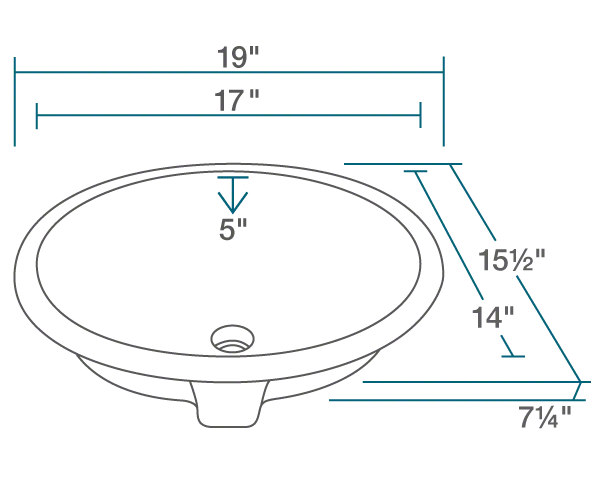

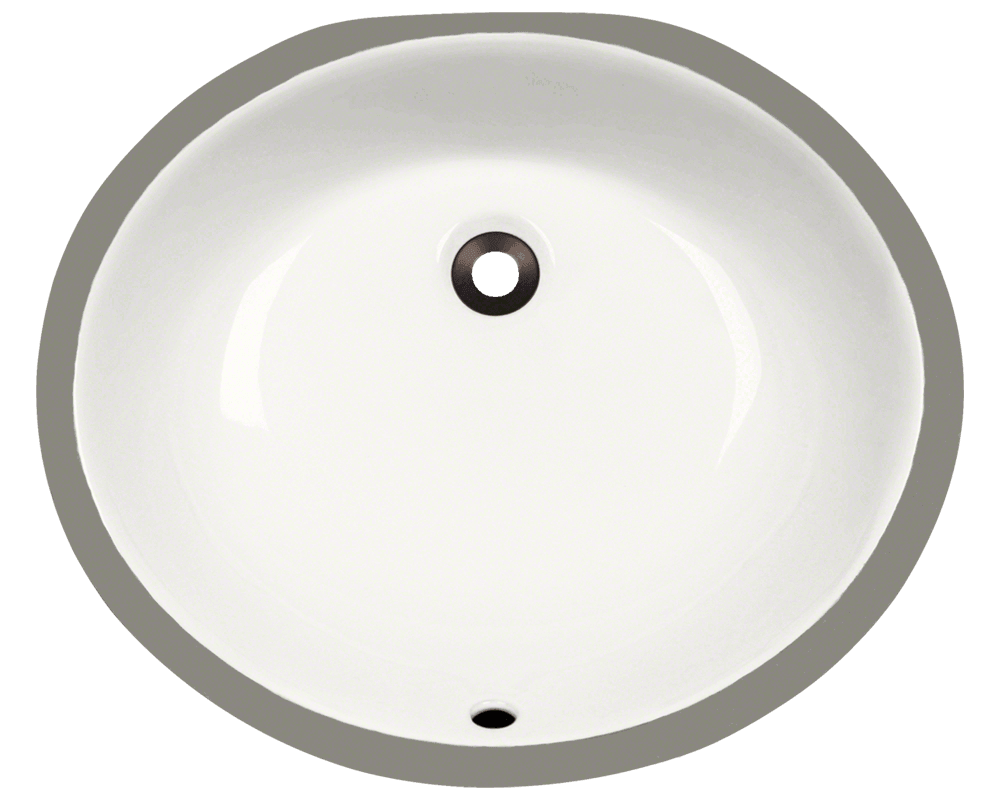

Undermount Porcelain (UPM-Porcelain Bathroom Sink)






The UPM porcelain undermount sink is made from true vitreous China which is triple glazed and triple fired to ensure your sink is durable and strong. Undermounting a bathroom sink creates a sleek look and allows for more space on your countertop. The overall dimensions for the UPM sink are 19" x 15 1/2" x 7 1/4" and requires a 21" minimum cabinet size.

Material: Porcelain

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface


Sink Color Options:

White

Bisque

Specifications:
Drain Opening Diameter = 1-1/2"
Depth Inside = 5", Outside = 7-1/4"
Does Not Include Countertop Thickness
Overflow Drain

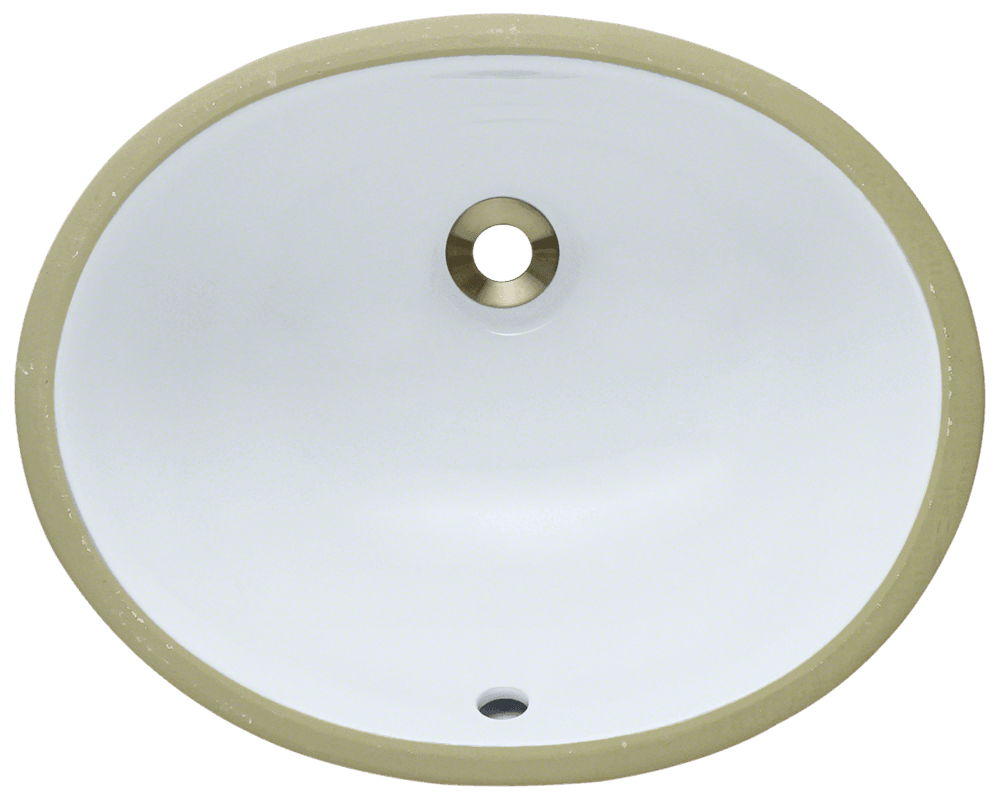

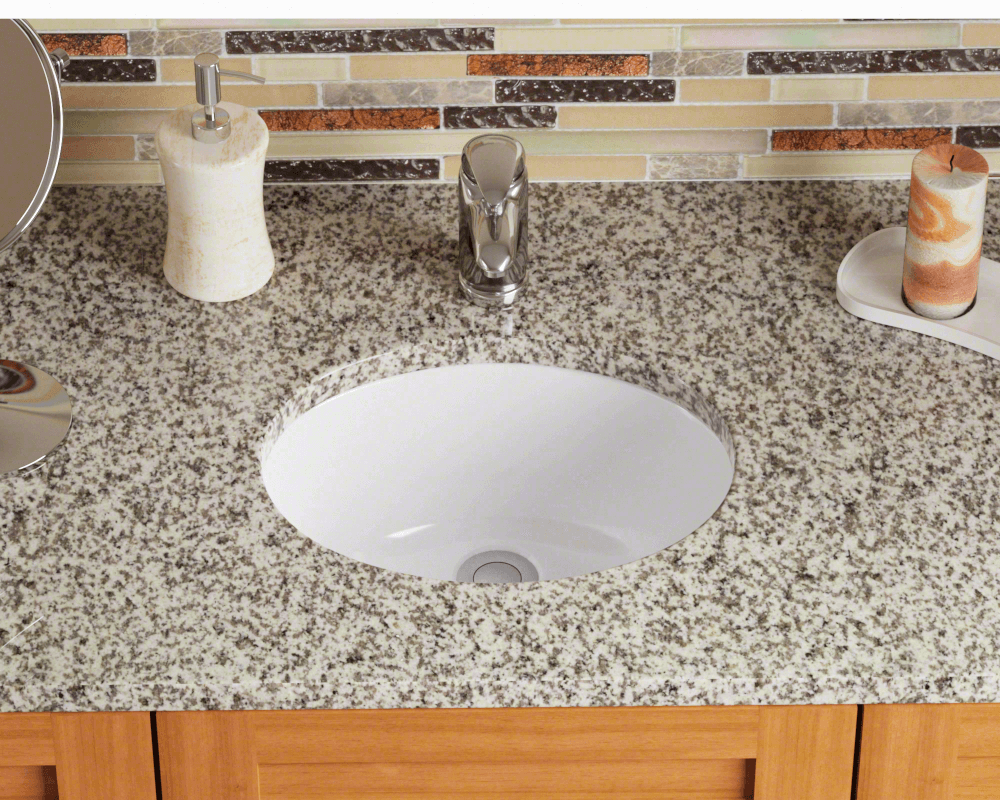

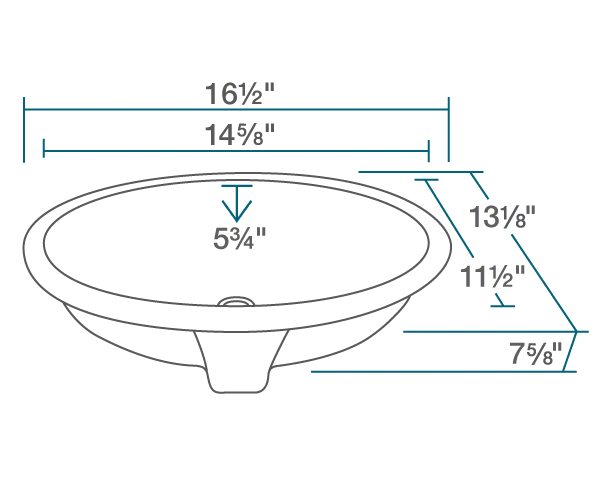

Undermount Porcelain (UPS-Porcelain Bathroom Sink)


The UPS porcelain undermount sink is made from true vitreous China which is triple glazed and triple fired to ensure your sink is durable and strong. Undermounting a bathroom sink creates a sleek look and allows for more space on your countertop. The overall dimensions for the UPS sink are 16 1/2" x 13 1/8" x 7 5/8" and requires an 18" minimum cabinet size.

Material: Porcelain

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface

Sink Color Options:

White

Bisque

Specifications:
Drain Opening Diameter = 1-1/2"
Depth Inside = 5-3/4", Outside = 7-5/8"
Does Not Include Countertop Thickness
Overflow Drain

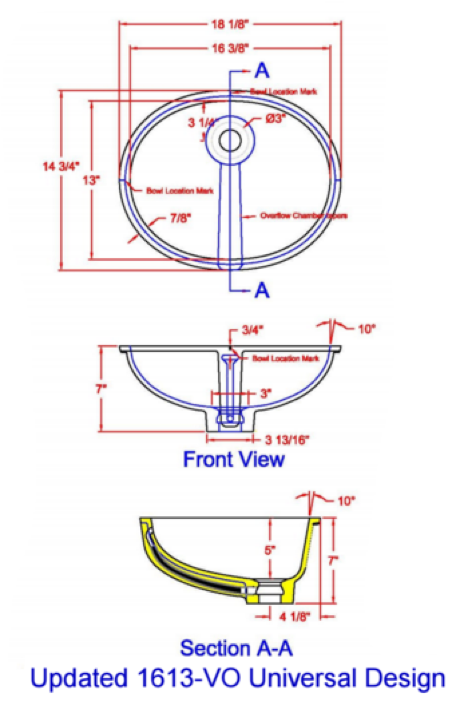

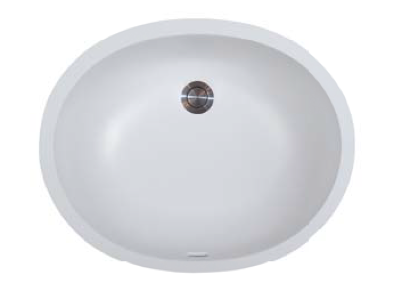

Integral Solid Surface Undermount (Gemstone Model 1613)


The Gemstone 1613 Solid Surface sink is the most popular sized bowl in the industry, and is available with or without an overflow.

Material: Acrylic Solid Surface

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface
Undermount for Stone and Quartz

Sink Color Options:

Polar White

Ivory

Cream

Biscuit

Antique

Pearl Grey

Specifications:
Drain Opening Diameter = 1-3/4"
Depth Inside = 5-5/16", Outside = 7-5/16"
Does Not Include Countertop Thickness
With or Without Overflow Drain
ADA compliant when installed according to guidelines

Additional Information: The polyester/acrylic lavs conform to all required code needed to be installed in commercial applications.

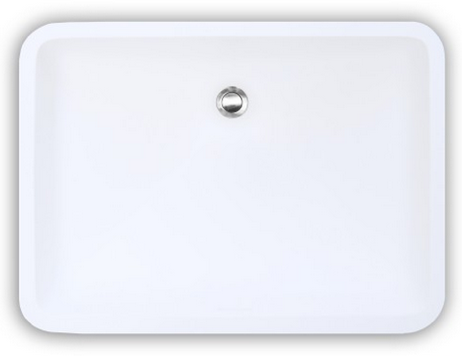

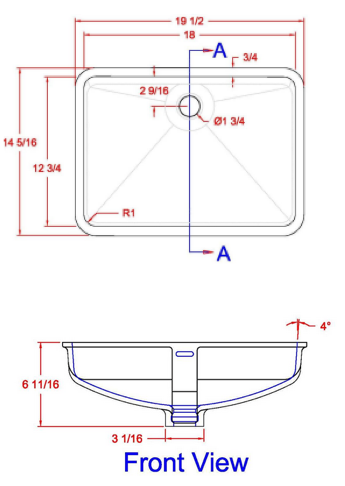

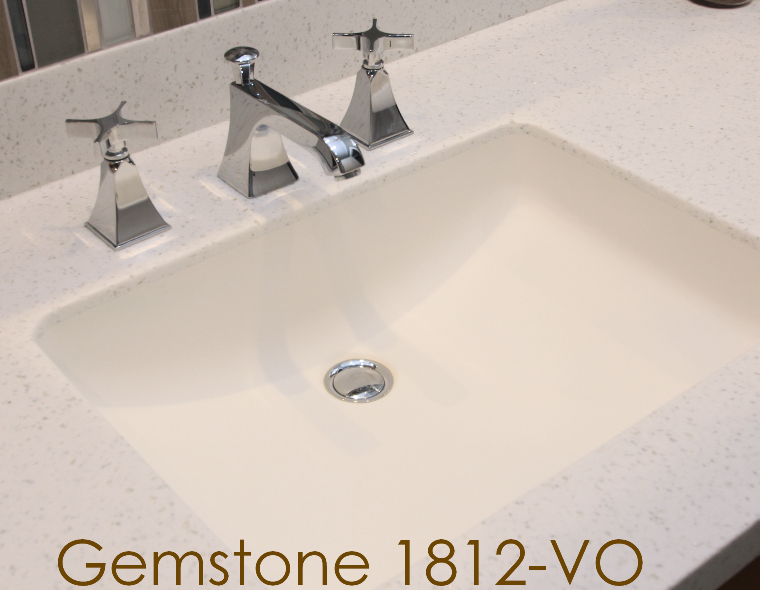

Integral Solid Surface Undermount (Gemstone Model 1812)


The Gemstone 1812 Universal Design lavatory bowl is part of Gemstone's commitment to design that is appealing to all. Design, function, performance are critical for today's architects, designers and homeowners. The 1812 is ideal for all applications, residential, clinical, commercial, restaurants and laboratories. The depth of the bowl allows for ADA applications all the way to 17" depths, something most bowls cannot do.

Material: Acrylic Solid Surface

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface
Undermount for Stone and Quartz

Sink Color Options:

Polar White

Ivory

Cream

Biscuit

Antique

Pearl Grey

Specifications:
Drain Opening Diameter = 1-3/4"
Depth Inside = 5", Outside = 6-11/16"
Does Not Include Countertop Thickness
With or Without Overflow Drain
ADA compliant when installed according to guidelines

Additional Information: The polyester/acrylic lavs conform to all required code needed to be installed in commercial applications.

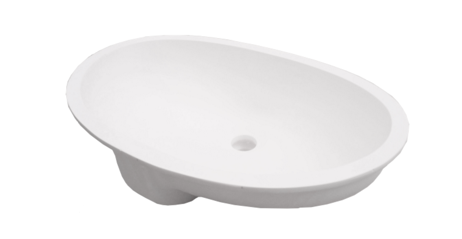

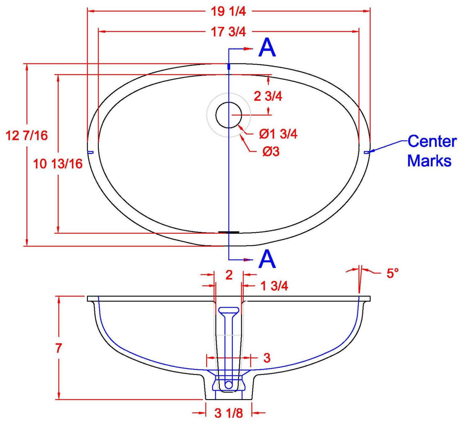

Integral Solid Surface Undermount (Gemstone Model 1711)


The Gemstone 1711 has the correct dimensioning to fit comfortably in a shallow 18" cabinet and the right depth to make it a universal design sink giving it the flexibility to install in any application. The size of the 1711 also allows it to look exceptional in standard depth cabinets as well. The shape of the bowl is not your typical oval and adds class and elegance to the vanity top while yielding uncompromising performance.

Material: Acrylic Solid Surface

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface
Undermount for Stone and Quartz

Sink Color Options:

Polar White

Ivory

Cream

Biscuit

Antique

Pearl Grey

Specifications:
Drain Opening Diameter = 1-3/4"
Depth Inside = 5", Outside = 7"
Does Not Include Countertop Thickness
With or Without Overflow Drain
ADA compliant when installed according to guidelines

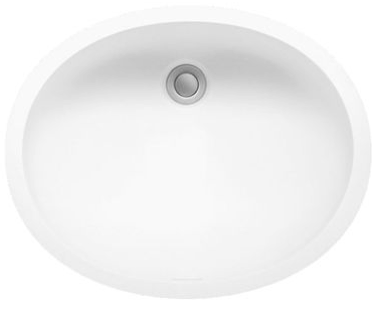

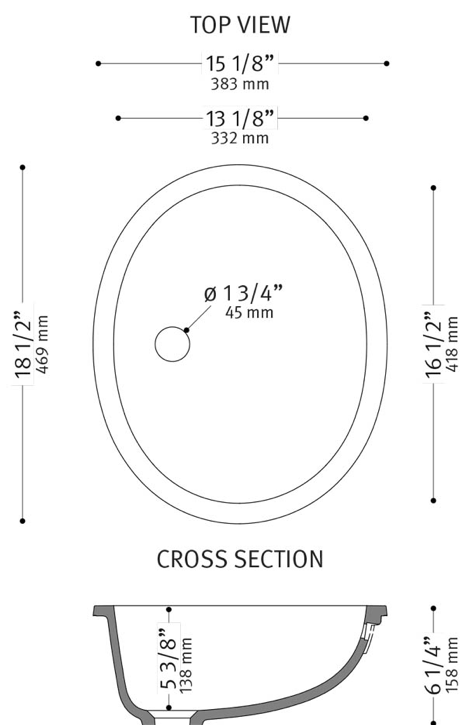

Integral Solid Surface Undermount (Corian Model 810)


Enjoy the simple, timeless style of this proven performer. The Corian 810 coordinates seamlessly with all Corian Vanity tops and is ready for a lifetime of use with its nonporous, stain resistant, and easy to clean surface.

Material: Acrylic Solid Surface

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface
Undermount for Stone and Quartz

Sink Color Options:

Bisque

Bone

Cameo White

Glacier White

Vanilla

Specifications:
Drain Opening Diameter = 1-3/4"
Depth Inside = 5-3/8", Outside = 6-1/4"
Does Not Include Countertop Thickness
No Overflow Drains
ADA compliant when installed according to guidelines

Additional Information: The polyester/acrylic lavs conform to all required code needed to be installed in commercial applications.

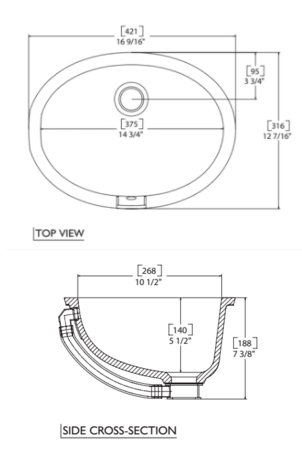

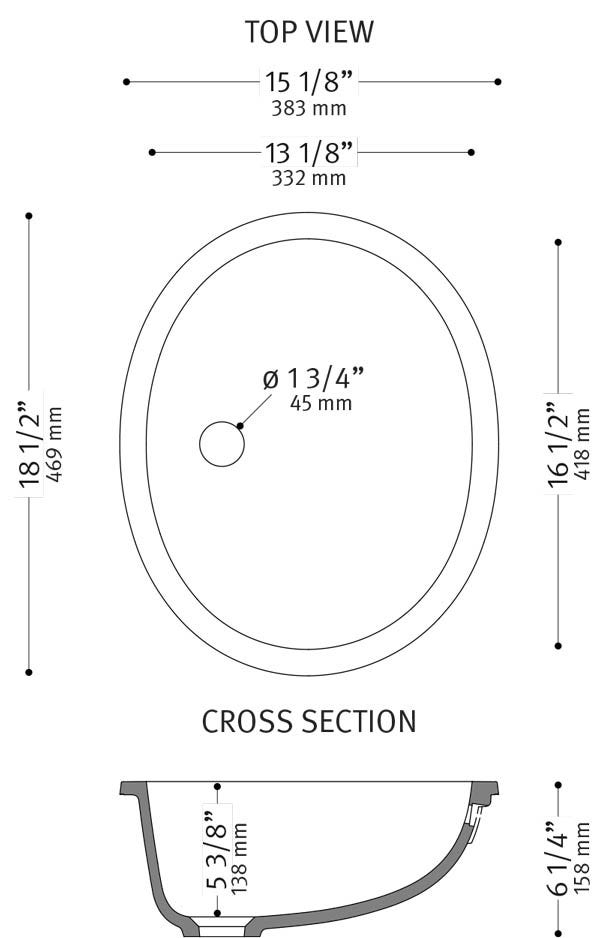

Integral Solid Surface Undermount (Corian Model 810P)


Enjoy the simple, timeless style of this proven performer. The Corian 810P coordinates seamlessly with all Corian Vanity tops and is ready for a lifetime of use with its nonporous, stain resistant, easy to clean surface, and integrated overflow.

Material: Acrylic Solid Surface

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface
Undermount for Stone and Quartz

Sink Color Options:

Bisque

Bone

Cameo White

Glacier White

Vanilla

Specifications:
Drain Opening Diameter = 1-3/4"
Depth Inside = 5-1/2", Outside = 7-1/2"
Does Not Include Countertop Thickness
Overflow Drain

Additional Information: The polyester/acrylic lavs conform to all required code needed to be installed in commercial applications.

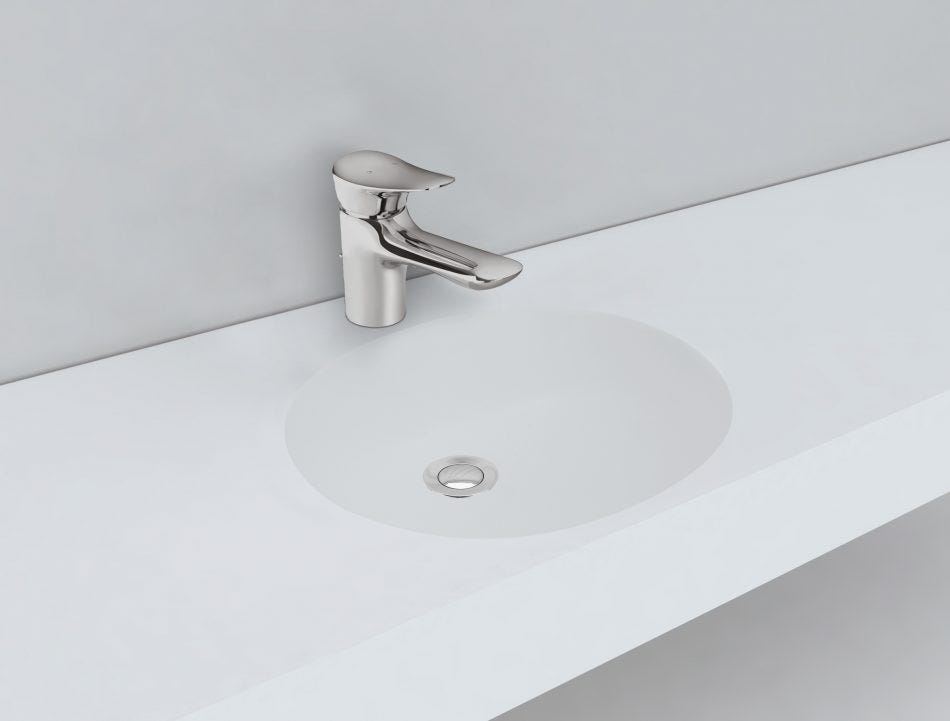

Integral Solid Surface Undermount (Corian Model 820)


This small, timeless design is perfect for narrow vanities. The Corian 820 coordinates seamlessly with all Corian Vanity tops, and is ready for a lifetime of use with its nonporous, stain resistant, and easy to clean surface.

Material: Acrylic Solid Surface

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface
Undermount for Stone and Quartz

Sink Color Options:

Bisque

Bone

Cameo White

Glacier White

Vanilla

Specifications:
Drain Opening Diameter = 1-3/4"
Depth Inside = 5-1/2", Outside = 7-5/16"
Does Not Include Countertop Thickness
With or Without Overflow Drain
ADA compliant when installed according to guidelines

Additional Information: The polyester/acrylic lavs conform to all required code needed to be installed in commercial applications.

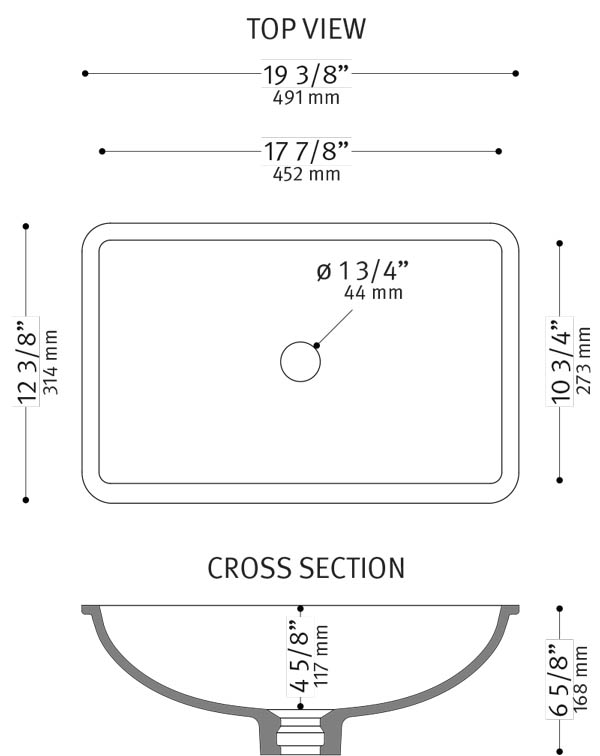

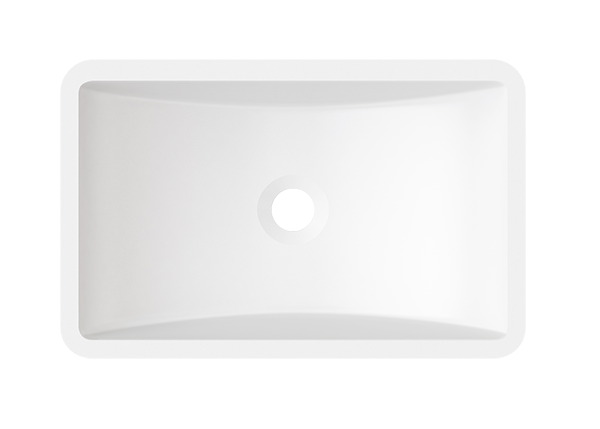

Integral Solid Surface Undermount (Corian Model 7412)


The Corian 7412 is new addition to the versatile and elegant line of Corian sinks that combines seamless installation & functionality, with durability, stain resistance, and an unparalleled aesthetic.

Material: Acrylic Solid Surface

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface
Undermount for Stone and Quartz

Sink Color Options:

Bisque

Bone

Cameo White

Glacier White

Vanilla

Specifications:
Drain Opening Diameter = 1-3/4"
Depth Inside = 4-5/6", Outside = 6-5/8"
Does Not Include Countertop Thickness
No Overflow Drains

Additional Information: The polyester/acrylic lavs conform to all required code needed to be installed in commercial applications.

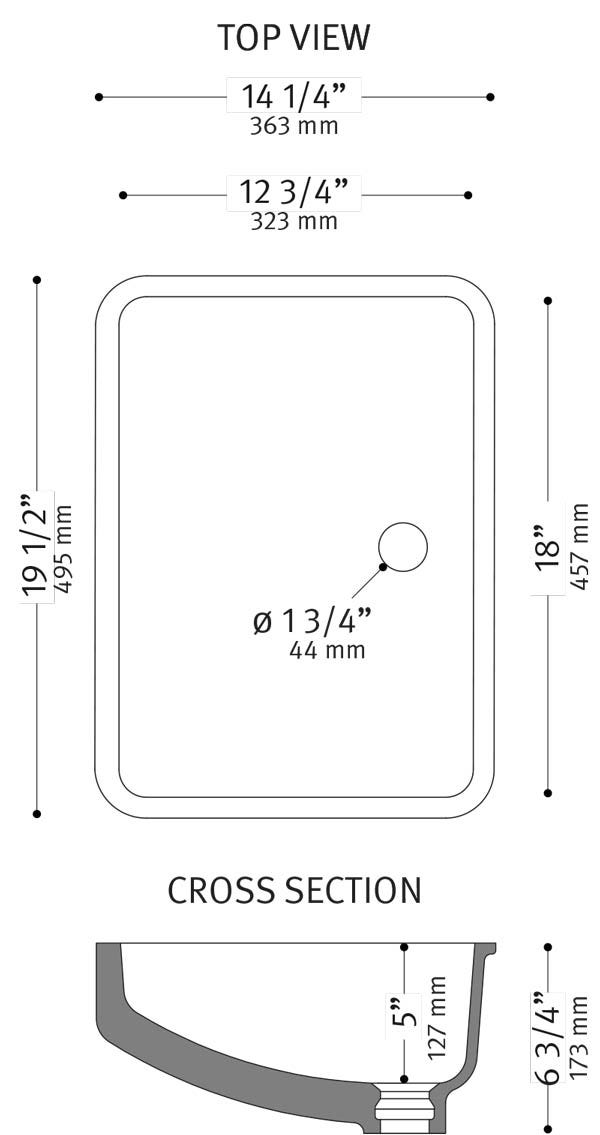

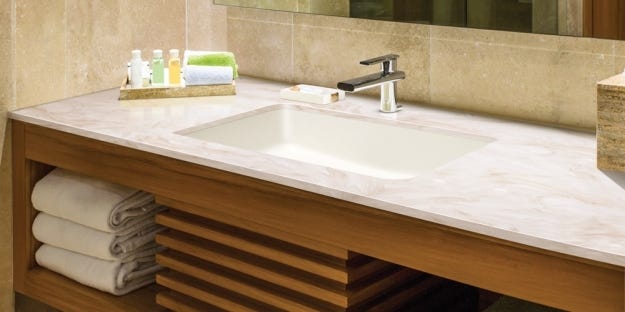

Integral Solid Surface Undermount (Corian Model 8254)


The Corian 8254 is a classic and elegant rectangular sink that combines seamless installation & functionality with durability, stain resistance, and an timeless aesthetic.

Material: Acrylic Solid Surface

Size: Single Bowl

Installations Type(s):
Seamless Undermount for Laminate
Seamless Undermount for Solid Surface
Undermount for Stone and Quartz

Sink Color Options:

Bisque

Bone

Cameo White

Glacier White

Vanilla

Specifications:
Drain Opening Diameter = 1-3/4"
Depth Inside = 5", Outside = 6-7/8"
Does Not Include Countertop Thickness
Overflow Drain
ADA compliant when installed according to guidelines

Additional Information: The polyester/acrylic lavs conform to all required code needed to be installed in commercial applications.
